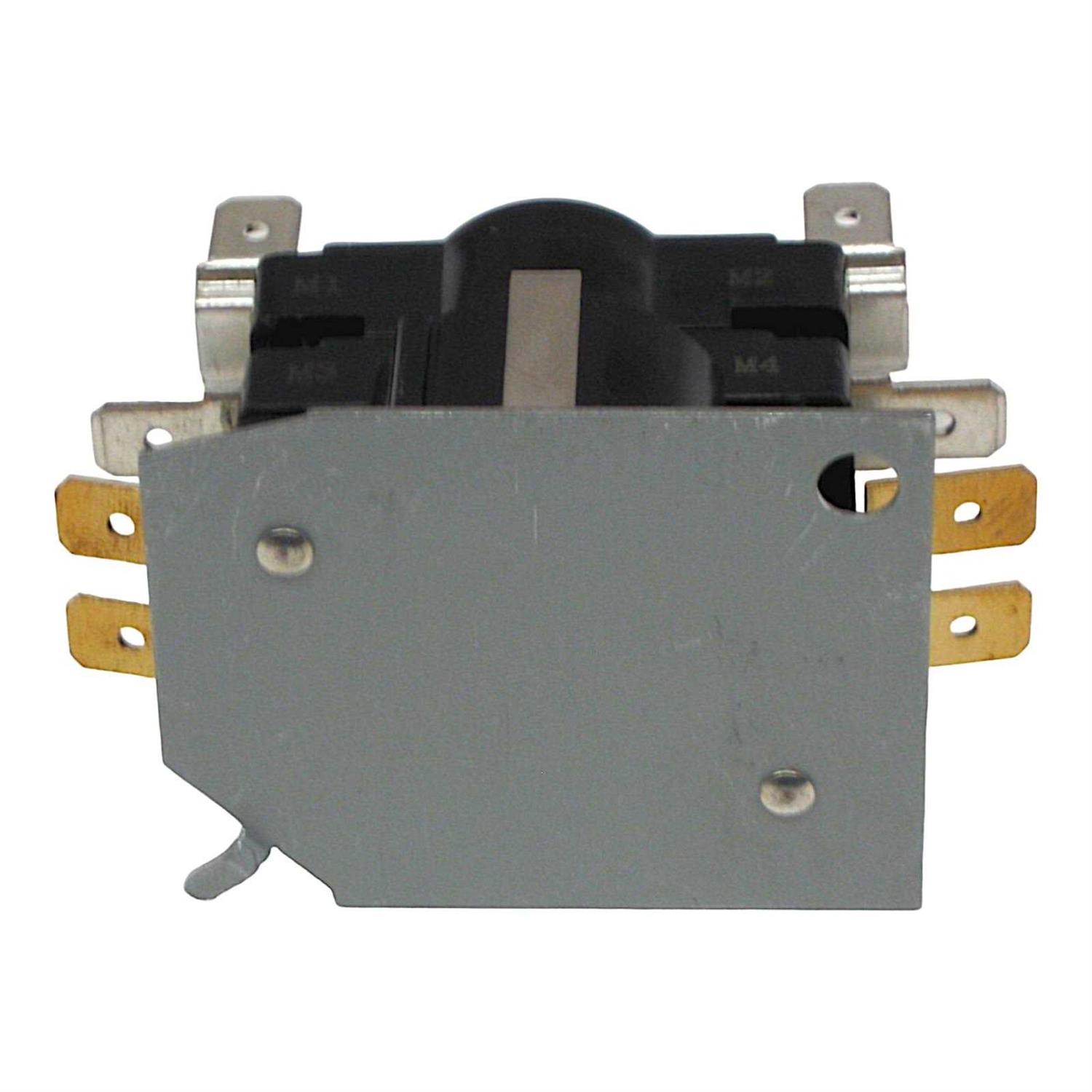

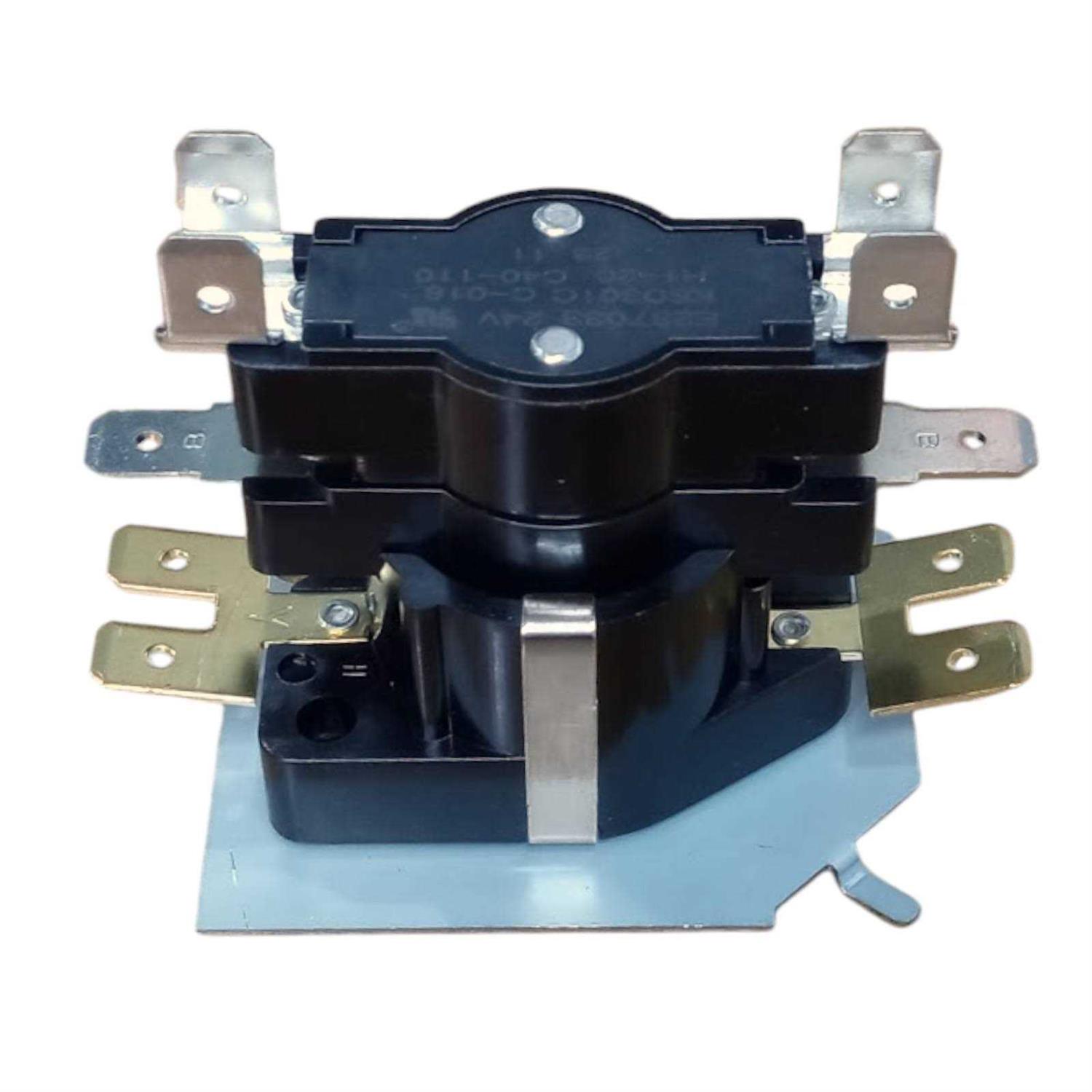

Electric Heat Sequencer / Motor Fan Blower Control DPST 24 Volt For Q103 / 24A34-3 / 1056789 / 1256504

Parts Connect Sequencer part number PCQ103. 24 Volts PST Timing / 2 Switch ff 40-110 Seconds n 1-20 Seconds SQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions. Terminal Markings are Equivalent to Competitive Types. Replacement for Numbers: arrier HN67QC005, ICP (Heil, Comfortmaker, Tempstar, Arcoair) 1056789, HQ1056789, Diversitech DGS103, Goodman / Amana / Janitrol 1256504 BT1256504, Klixon E017, Mars 33244, 33844, Napco NS103, Supco Q103, White Rodgers 24A34-3. Watsco TDR20, York 525-37322-000. COMBINED LOAD RATING TABLE ALL MODELS) 0A @ 240 VAC TOTAL, 3A Non-Inductive + 7 FLA 42 LRA nductive, N Time: Elapsed time to make contacts after eater is energized (min. to max.) FF Time: Elapsed time to break contacts after eater is de-energized (min. to max.) M1-M2 and M3-M4 are always first switches o turn ON and last to turn OFF. All other witches are random ON and random OFF NOTE Underwriters Laboratories requires a an interlock circuit to insure the blower emains operating whenever more than one equencer is used. he fan interlock should e the M1/ M2 ontacts of the second or third sequencer. ll M1/ M2 ontacts are wired to the blower otor so that any sequencer that is energized ill keep the blower ON.
