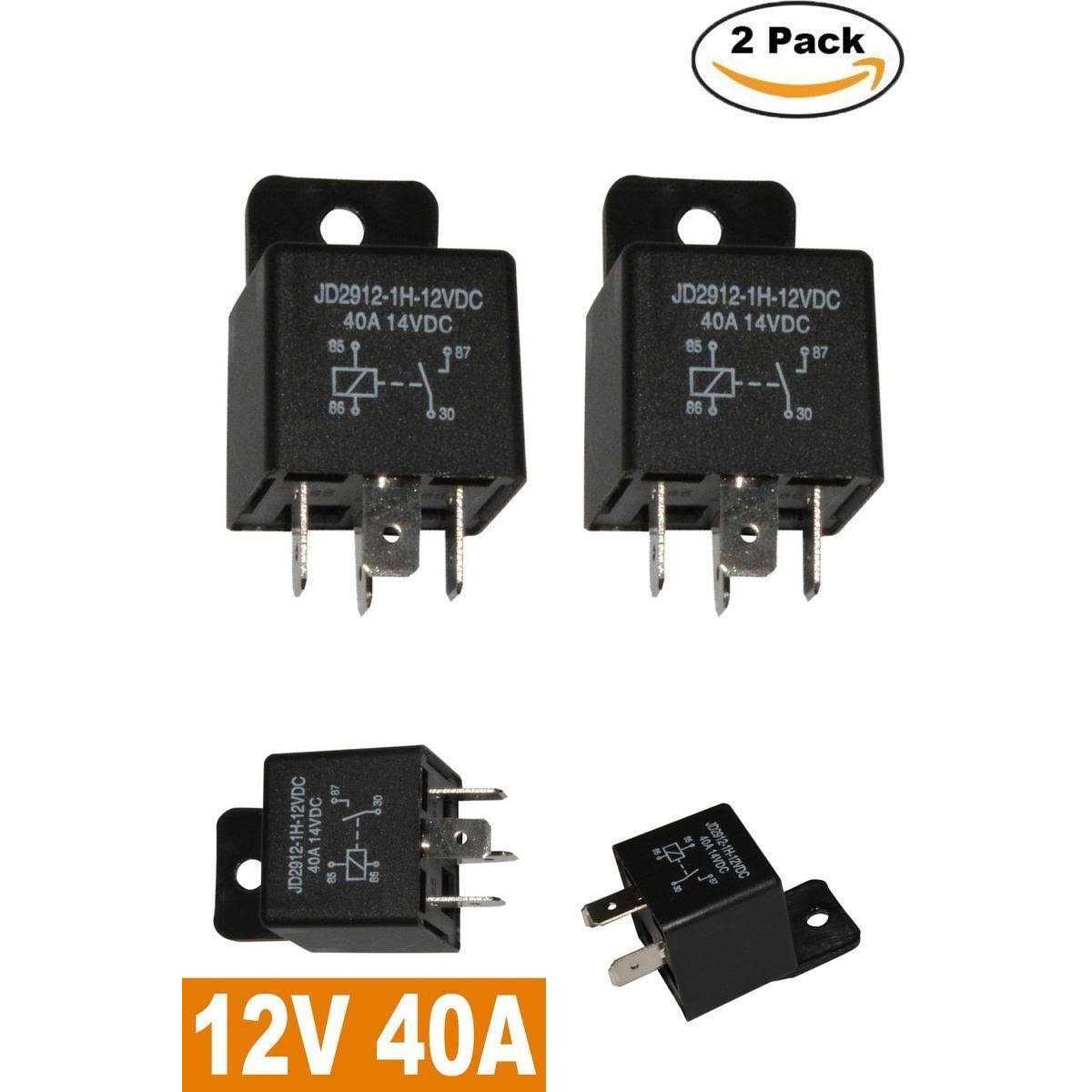

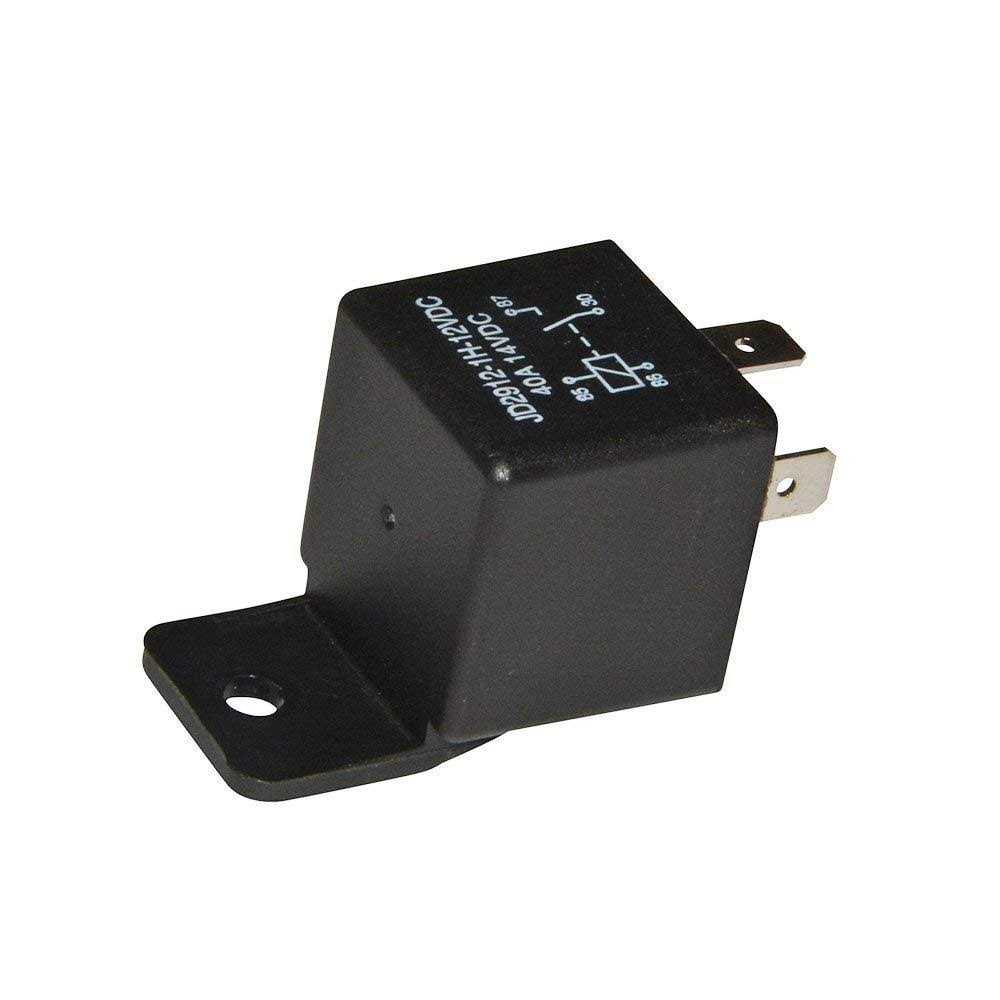

EHDIS Car Relay 4 Pin 12v 40amp Spst Model No

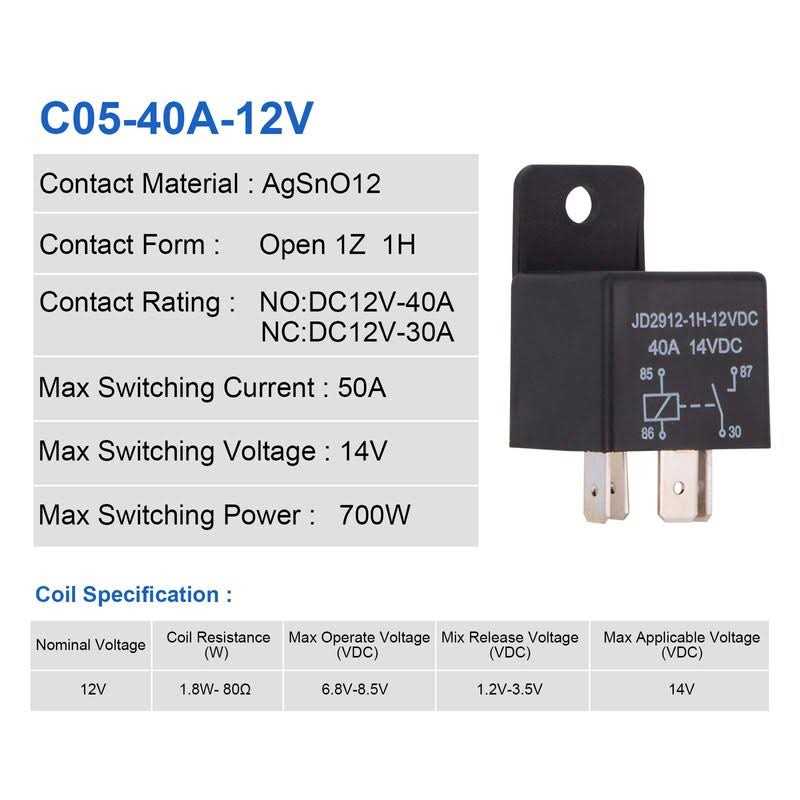

Contact Data: – Contact Material: AgSnO12 – Contact Form: 1Z / 1H(A) – Contact Ratings: No: 40A 72VDC – Contact Resistance: 100mMax at 6VDC 1A – Max switching Current: 40A – Max Switching Power: 560W – Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) – Life Expectancy Mechanical: 10,000,000 Operations – Coil Specification: – Nominal Voltage(VDC): 12V – Coil Resistance (1.8W): 80 – Max Operate Voltage (VDC): 6.5~8.0 – Mix Release (VDC): 1.2~3.6 – Max Applicable Voltage (VDC): 14 – Characteristics: – Temperature Range: -30C ~+80C – Vibration Resistance: 10~55Hz, 1.5mm – Shock Resistance: – Operations Extremes: 10g – Damage Limits: 100g – Humidity: 40%~85% – Insulation Resistance: 100m ohm Min at 500VDC – Safety Standard: CCEE – Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) – Between Contact and coil: 750VAC (for one minute/sec) – Operate Time: 7ms – Release Time: 5ms – Weigh: Approx. 35g
